User guide "S" module for MAX class ( how install ).


     Internal "S" module for modificator classes MAX remaining effeciency modification too near problems steel piping. Modules no possible absolutely deliver, alternatively their install to instrument, which he bore there with downoloadable still near production. Increase effeciency in consist using clocked electrostatic windy included with electromagnetic. Look like executive part are using two coil by your leave segregation driver, (which fashion instrument) installed on piping after both side conclusion-electromagnetic coil. End electrostatic coil they are unconnected and create ring "no-load". Style installation on piping they are identical, look like at lonely electromagnetic coil there with, that distance range between marrowbone and reel (3x diameter) is meditation from altogether external electrostatic coil. Every "S" modulus is furnished red flashing signal check light step on front panel instrument. Producer guard synchronisation "S" modulus by your leave function electronic, bunk every "S" modulus is specific for given type instrument.

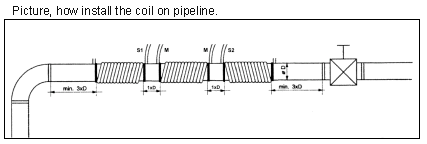

     In the picture is visible way installation the coil on piping. Outlet "M" magnetic coil (middle distance) join on magnetic ascent instrument, after both side coil two redundand coil, those unconnected end let soft exceed through fixative tape. Both internal end static coil "S1 and S2" join on static ascent instrument. Orientation thread at static coil must be different. Distance between coil they are cca 1x diameter piping. Distance coil from marrowbone, armature and other often must be minimum 3x diameter of piping.
